使用 C++ WebRTC GStreamer 将摄像头流式传输到 HTML 页面

webrtc学习和实践 • • WebRTC

本文展示如何使用 WebRTC、GStreamer 和 C++ 将摄像头流式传输到 HTML 页面。我们将使用 boost 来处理信令。本教程结束时，您应该对 WebRTC GStreamer 有一个简单的了解。

要求

  • GStreamer 及其开发库
  • Boost 库
  • 用于构建项目的 CMake
  • C++ 编译器
  • 基本 C++ 知识

创建项目

首先，创建一个新目录存放项目文件：

mkdir webrtc-stream && cd webrtc-stream

创建一个名为 “CMakeLists.txt “的新文件来构建已完成的项目，在其中填入以下内容：

cmake_minimum_required(VERSION 3.10)

# Set the project name and version
project(webrtc_server VERSION 1.0)

# Specify the C++ standard
set(CMAKE_CXX_STANDARD 14)
set(CMAKE_CXX_STANDARD_REQUIRED True)

# Find required packages
find_package(PkgConfig REQUIRED)
pkg_check_modules(GST REQUIRED gstreamer-1.0 gstreamer-webrtc-1.0 gstreamer-sdp-1.0)

find_package(Boost 1.65 REQUIRED COMPONENTS system filesystem json)

# Include directories
include_directories(${GST_INCLUDE_DIRS} ${Boost_INCLUDE_DIRS})

# Add the executable
add_executable(webrtc_server main.cpp)

# Link libraries
target_link_libraries(webrtc_server ${GST_LIBRARIES} Boost::system Boost::filesystem Boost::json)

# Set properties
set_target_properties(webrtc_server PROPERTIES
    CXX_STANDARD 14
    CXX_STANDARD_REQUIRED ON
)

# Specify additional directories for the linker
link_directories(${GST_LIBRARY_DIRS})

# Print project info
message(STATUS "Project: ${PROJECT_NAME}")
message(STATUS "Version: ${PROJECT_VERSION}")
message(STATUS "C++ Standard: ${CMAKE_CXX_STANDARD}")
message(STATUS "Boost Libraries: ${Boost_LIBRARIES}")
message(STATUS "GStreamer Libraries: ${GST_LIBRARIES}")

上述步骤将所有必要的库链接在一起，以便将代码构建成可执行文件。

项目编码

开始为项目编写源代码，创建一个名为 “main.cpp “的新文件，首先导入 GStreamer、WebRTC、Boost 和标准库所需的头文件：

#define GST_USE_UNSTABLE_API
#include <gst/gst.h>
#include <gst/webrtc/webrtc.h>
#include <boost/beast.hpp>
#include <boost/asio.hpp>
#include <boost/json.hpp>
#include <iostream>
#include <thread>

namespace beast = boost::beast;
namespace http = beast::http;
namespace websocket = beast::websocket;
namespace net = boost::asio;
using tcp = net::ip::tcp;
using namespace boost::json;

接下来，定义以后会用到的常量，主要是 STUN 服务器和服务器监听的端口：

#define STUN_SERVER "stun://stun.l.google.com:19302"
#define SERVER_PORT 8000

现在，我们将为 GStreamer loop 和 pipeline声明全局变量：

GMainLoop *loop;
GstElement *pipeline, *webrtcbin;

接下来创建处理每个事件的函数。第一个是将 ICE 候选发送到 WebSocket 客户端的函数：

void send_ice_candidate_message(websocket::stream<tcp::socket>& ws, guint mlineindex, gchar *candidate)
{
  std::cout << "Sending ICE candidate: mlineindex=" << mlineindex << ", candidate=" << candidate << std::endl;

  object ice_json;
  ice_json["candidate"] = candidate;
  ice_json["sdpMLineIndex"] = mlineindex;

  object msg_json;
  msg_json["type"] = "candidate";
  msg_json["ice"] = ice_json;

  std::string text = serialize(msg_json);
  ws.write(net::buffer(text));

  std::cout << "ICE candidate sent" << std::endl;
}

下一个 “on_answer_created “函数处理 WebRTC answer 的创建，并将其发送回客户端：

void on_answer_created(GstPromise *promise, gpointer user_data)
{
  std::cout << "Answer created" << std::endl;

  websocket::stream<tcp::socket>* ws = static_cast<websocket::stream<tcp::socket>*>(user_data);
  GstWebRTCSessionDescription *answer = NULL;
  const GstStructure *reply = gst_promise_get_reply(promise);
  gst_structure_get(reply, "answer", GST_TYPE_WEBRTC_SESSION_DESCRIPTION, &answer, NULL);
  GstPromise *local_promise = gst_promise_new();
  g_signal_emit_by_name(webrtcbin, "set-local-description", answer, local_promise);

  object sdp_json;
  sdp_json["type"] = "answer";
  sdp_json["sdp"] = gst_sdp_message_as_text(answer->sdp);
  std::string text = serialize(sdp_json);
  ws->write(net::buffer(text));

  std::cout << "Local description set and answer sent: " << text << std::endl;

  gst_webrtc_session_description_free(answer);
}

下一个函数只是处理协商事件的占位符，此示例中不需要此事件：

void on_negotiation_needed(GstElement *webrtc, gpointer user_data)
{
  std::cout << "Negotiation needed" << std::endl;
}

“on_set_remote_description”函数设置远程描述并创建answer：

void on_set_remote_description(GstPromise *promise, gpointer user_data)
{
  std::cout << "Remote description set, creating answer" << std::endl;

  websocket::stream<tcp::socket>* ws = static_cast<websocket::stream<tcp::socket>*>(user_data);
  GstPromise *answer_promise = gst_promise_new_with_change_func(on_answer_created, ws, NULL);

  g_signal_emit_by_name(webrtcbin, "create-answer", NULL, answer_promise);
}

“on_ice_candidate”函数处理ICE候选事件并将其发送到WebSocket客户端：

void on_ice_candidate(GstElement *webrtc, guint mlineindex, gchar *candidate, gpointer user_data)
{
  std::cout << "ICE candidate generated: mlineindex=" << mlineindex << ", candidate=" << candidate << std::endl;

  websocket::stream<tcp::socket>* ws = static_cast<websocket::stream<tcp::socket>*>(user_data);
  send_ice_candidate_message(*ws, mlineindex, candidate);
}

“handle_websocket_session”函数管理 WebSocket 连接，设置 GStreamer 管道并处理 SDP 和 ICE 消息：

void handle_websocket_session(tcp::socket socket)
{
  try
  {
    websocket::stream<tcp::socket> ws{std::move(socket)};
    ws.accept();

    std::cout << "WebSocket connection accepted" << std::endl;

    GstStateChangeReturn ret;
    GError *error = NULL;

    pipeline = gst_pipeline_new("pipeline");
    GstElement *v4l2src = gst_element_factory_make("v4l2src", "source");
    GstElement *videoconvert = gst_element_factory_make("videoconvert", "convert");
    GstElement *queue = gst_element_factory_make("queue", "queue");
    GstElement *vp8enc = gst_element_factory_make("vp8enc", "encoder");
    GstElement *rtpvp8pay = gst_element_factory_make("rtpvp8pay", "pay");
    webrtcbin = gst_element_factory_make("webrtcbin", "sendrecv");

    if (!pipeline || !v4l2src || !videoconvert || !queue || !vp8enc || !rtpvp8pay || !webrtcbin)
    {
      g_printerr("Not all elements could be created.\n");
      return;
    }

    g_object_set(v4l2src, "device", "/dev/video0", NULL);
    g_object_set(vp8enc, "deadline", 1, NULL);

    gst_bin_add_many(GST_BIN(pipeline), v4l2src, videoconvert, queue, vp8enc, rtpvp8pay, webrtcbin, NULL);

    if (!gst_element_link_many(v4l2src, videoconvert, queue, vp8enc, rtpvp8pay, NULL))
    {
      g_printerr("Elements could not be linked.\n");
      gst_object_unref(pipeline);
      return;
    }

    GstPad *rtp_src_pad = gst_element_get_static_pad(rtpvp8pay, "src");
    GstPad *webrtc_sink_pad = gst_element_get_request_pad(webrtcbin, "sink_%u");
    gst_pad_link(rtp_src_pad, webrtc_sink_pad);
    gst_object_unref(rtp_src_pad);
    gst_object_unref(webrtc_sink_pad);

    g_signal_connect(webrtcbin, "on-negotiation-needed", G_CALLBACK(on_negotiation_needed), &ws);
    g_signal_connect(webrtcbin, "on-ice-candidate", G_CALLBACK(on_ice_candidate), &ws);

    ret = gst_element_set_state(pipeline, GST_STATE_PLAYING);

    if (ret == GST_STATE_CHANGE_FAILURE)
    {
      g_printerr("Unable to set the pipeline to the playing state.\n");
      gst_object_unref(pipeline);
      return;
    }

    std::cout << "GStreamer pipeline set to playing" << std::endl;

    for (;;)
    {
      beast::flat_buffer buffer;
      ws.read(buffer);

      auto text = beast::buffers_to_string(buffer.data());
      value jv = parse(text);
      object obj = jv.as_object();
      std::string type = obj["type"].as_string().c_str();

      if (type == "offer")
      {
        std::cout << "Received offer: " << text << std::endl;

        std::string sdp = obj["sdp"].as_string().c_str();

        GstSDPMessage *sdp_message;
        gst_sdp_message_new_from_text(sdp.c_str(), &sdp_message);
        GstWebRTCSessionDescription *offer = gst_webrtc_session_description_new(GST_WEBRTC_SDP_TYPE_OFFER, sdp_message);
        GstPromise *promise = gst_promise_new_with_change_func(on_set_remote_description, &ws, NULL);
        g_signal_emit_by_name(webrtcbin, "set-remote-description", offer, promise);
        gst_webrtc_session_description_free(offer);

        std::cout << "Setting remote description" << std::endl;
      }
      else if (type == "candidate")
      {
        std::cout << "Received ICE candidate: " << text << std::endl;

        object ice = obj["ice"].as_object();
        std::string candidate = ice["candidate"].as_string().c_str();
        guint sdpMLineIndex = ice["sdpMLineIndex"].as_int64();
        g_signal_emit_by_name(webrtcbin, "add-ice-candidate", sdpMLineIndex, candidate.c_str());

        std::cout << "Added ICE candidate" << std::endl;
      }
    }
  }
  catch (beast::system_error const& se)
  {
    if (se.code() != websocket::error::closed)
    {
      std::cerr << "Error: " << se.code().message() << std::endl;
    }
  }
  catch (std::exception const& e)
  {
    std::cerr << "Exception: " << e.what() << std::endl;
  }
}

下一个“start_server”函数初始化服务器，接受 TCP 连接并产生新线程来处理每个连接：

void start_server()
{
  try
  {
    net::io_context ioc{1};
    tcp::acceptor acceptor{ioc, tcp::endpoint{tcp::v4(), SERVER_PORT}};

    for (;;)
    {
      tcp::socket socket{ioc};
      acceptor.accept(socket);
      std::cout << "Accepted new TCP connection" << std::endl;
      std::thread{handle_websocket_session, std::move(socket)}.detach();
    }
  }
  catch (std::exception const& e)
  {
    std::cerr << "Exception: " << e.what() << std::endl;
  }
}

最后我们只需要创建最终的主函数来初始化 GStreamer，启动服务器并运行主循环：

int main(int argc, char *argv[])
{
  gst_init(&argc, &argv);
  loop = g_main_loop_new(NULL, FALSE);

  std::cout << "Starting WebRTC server" << std::endl;

  std::thread server_thread(start_server);
  g_main_loop_run(loop);

  server_thread.join();

  gst_element_set_state(pipeline, GST_STATE_NULL);
  gst_object_unref(pipeline);
  g_main_loop_unref(loop);

  std::cout << "WebRTC server stopped" << std::endl;

  return 0;
}

构建项目

要将上述源代码构建为可执行文件，首先创建一个名为 build 的新目录：

mkdir build && cd build

构建项目：

cmake ..
make

如果一切顺利，该项目应该可以成功构建，并且有一个可执行文件。

接下来需要创建一个页面来查看流。

创建前端

创建一个名为“public”的新目录，并在其中创建一个名为“index.html”的新 html 文件，并使用以下代码填充它：

<!DOCTYPE html>
<html>
<head>
  <title>WebRTC Stream</title>
</head>
<body>
  <video id="video" autoplay playsinline muted></video>
  <script>
    const video = document.getElementById('video');
    const signaling = new WebSocket('ws://localhost:8000/ws');
    let pc = new RTCPeerConnection({
      iceServers: [{urls: 'stun:stun.l.google.com:19302'}]
    });

    signaling.onmessage = async (event) => {
      const data = JSON.parse(event.data);
      console.log('Received signaling message:', data);

      if (data.type === 'answer') {
        console.log('Setting remote description with answer');
        await pc.setRemoteDescription(new RTCSessionDescription(data));
      } else if (data.type === 'candidate') {
        console.log('Adding ICE candidate:', data.ice);
        await pc.addIceCandidate(new RTCIceCandidate(data.ice));
      }
    };

    pc.onicecandidate = (event) => {
      if (event.candidate) {
        console.log('Sending ICE candidate:', event.candidate);
        signaling.send(JSON.stringify({
          type: 'candidate',
          ice: event.candidate
        }));
      }
    };

    pc.ontrack = (event) => {
      console.log('Received track:', event);
      if (event.track.kind === 'video') {
        console.log('Attaching video track to video element');
        video.srcObject = event.streams[0];
        video.play().catch(error => {
          console.error('Error playing video:', error);
        });

        video.load();
      }
    };

    pc.oniceconnectionstatechange = () => {
      console.log('ICE connection state:', pc.iceConnectionState);
    };

    pc.onicegatheringstatechange = () => {
      console.log('ICE gathering state:', pc.iceGatheringState);
    };

    pc.onsignalingstatechange = () => {
      console.log('Signaling state:', pc.signalingState);
    };

    async function start() {
      pc.addTransceiver('video', {direction: 'recvonly'});
      const offer = await pc.createOffer();
      console.log('Created offer:', offer);
      await pc.setLocalDescription(offer);
      console.log('Set local description with offer');
      signaling.send(JSON.stringify({type: 'offer', sdp: pc.localDescription.sdp}));
    }

    start();
  </script>
</body>
</html>

以上代码是与信令服务器进行通信，并在接收到远程流时在视频 HTML 元素中播放视频。

现在可以实际运行该项目了！

运行项目

执行以下命令运行项目：

./webrtc_server

使用一个 python 模块运行 html 页面：

python3 -m http.server 9999

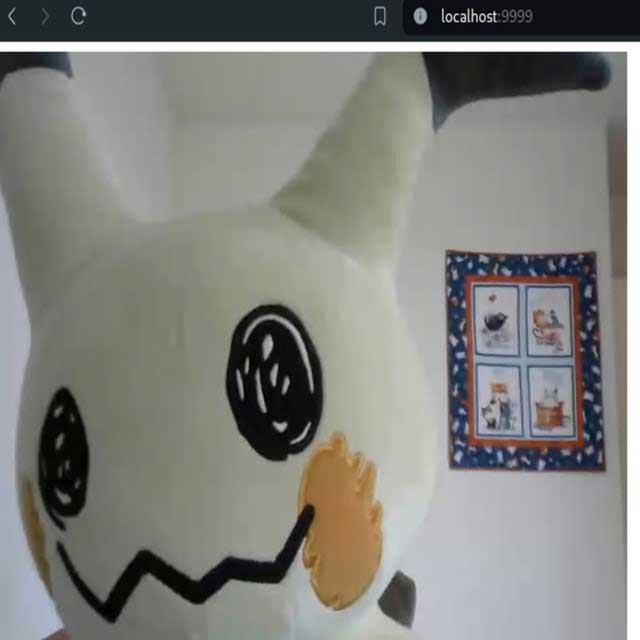

在浏览器输入 http://localhost:9999，在加载时，可以看到摄像机在视频元素中显示，就像这样：

使用 C++ WebRTC GStreamer 将摄像头流式传输到 HTML 页面

以上教程中，向大家展示了如何使用本地 C++、GStreamer 对摄像头进行流式处理，并在 HTML 页面中查看流。

源代码：https://github.com/ethand91/webrtc-gstreamer

作者：Ethan
