使用ffmpeg实现合并多个音频为一个音频的方法

使用ffmpeg实现合并多个音频为一个音频可以使用ffmpeg的filter功能来进行这个操作，而且效果很好

amerge也可以实现，但是这里就介绍一下使用amix来做的方法

ffmpeg的filter功能强大的功能能够满足几乎所有的音视频操作，包括合并音频

ffmpeg可以支持多输入通道，也可以支持多输出通道，合并多音频的功能就使用多输入通道，单输出通道，所以大概的形式如下：

ffmpeg -i INPUT -i INPUT -i INPUT output

如果想用amix，这个参数是-filter_complex中的参数，可以这么用

 -filter_complex amix=inputs=2:duration=first:dropout_transition=2

整条合并多音频的的命令行即如下

ffmpeg -i ~/Music/iTunes/iTunes Media/Music/久石/热门单曲-天空之城/天空之城.mp3  -i /Users/StevenLiu/Music/iTunes/iTunes Media/Music/Linda Ronstadt/Brokeback Mountain Soundtrack/It'S So Easy.mp3 -filter_complex amix=inputs=2:duration=first:dropout_transition=2 -f mp3 a.mp3

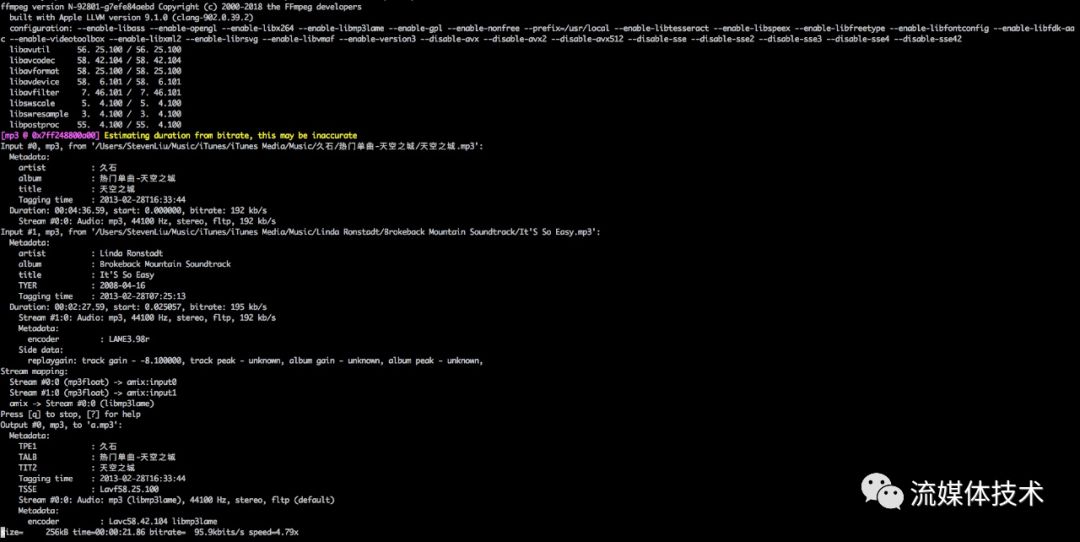

上面的命令为将天空之城与It’s So Easy合并成一个a.mp3文件，整个过程如下：

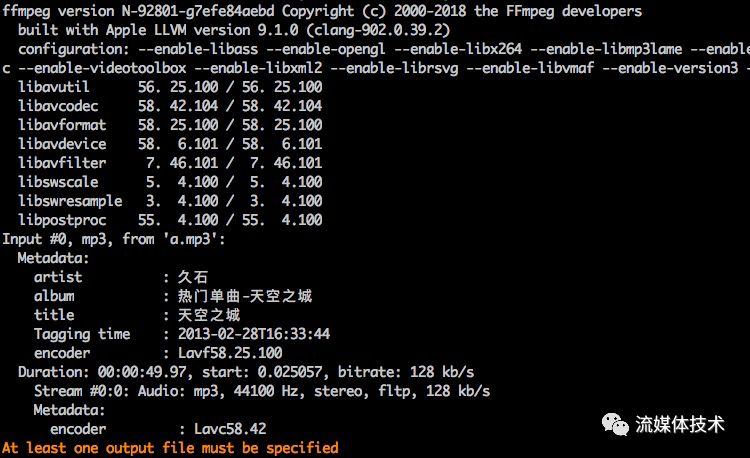

合并完成之后，可以查看一下a.mp3文件的文件信息：

如此，多音频合并为一个音频文件的操作即成功，可以使用播放器播放一下试试。

为了方便喜欢抄代码的大佬们抄代码，我把相关处理的代码贴上来仅供参考：

/*
 * Copyright (c) 2010 Nicolas George
 * Copyright (c) 2011 Stefano Sabatini
 * Copyright (c) 2014 Andrey Utkin
 *
 * Permission is hereby granted, free of charge, to any person obtaining a copy
 * of this software and associated documentation files (the "Software"), to deal
 * in the Software without restriction, including without limitation the rights
 * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 * copies of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included in
 * all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
 * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
 * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL
 * THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
 * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
 * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
 * THE SOFTWARE.
 */

/**
 * @file
 * API example for demuxing, decoding, filtering, encoding and muxing
 * @example transcoding.c
 */

#include <libavcodec/avcodec.h>
#include <libavformat/avformat.h>
#include <libavfilter/buffersink.h>
#include <libavfilter/buffersrc.h>
#include <libavutil/opt.h>
#include <libavutil/pixdesc.h>

static AVFormatContext *ifmt_ctx;
static AVFormatContext *ofmt_ctx;
typedef struct FilteringContext {
    AVFilterContext *buffersink_ctx;
    AVFilterContext *buffersrc_ctx;
    AVFilterGraph *filter_graph;
} FilteringContext;
static FilteringContext *filter_ctx;

typedef struct StreamContext {
    AVCodecContext *dec_ctx;
    AVCodecContext *enc_ctx;
} StreamContext;
static StreamContext *stream_ctx;

static int open_input_file(const char *filename)
{
    int ret;
    unsigned int i;

    ifmt_ctx = NULL;
    if ((ret = avformat_open_input(&ifmt_ctx, filename, NULL, NULL)) < 0) {
        av_log(NULL, AV_LOG_ERROR, "Cannot open input filen");
        return ret;
    }

    if ((ret = avformat_find_stream_info(ifmt_ctx, NULL)) < 0) {
        av_log(NULL, AV_LOG_ERROR, "Cannot find stream informationn");
        return ret;
    }

    stream_ctx = av_mallocz_array(ifmt_ctx->nb_streams, sizeof(*stream_ctx));
    if (!stream_ctx)
        return AVERROR(ENOMEM);

    for (i = 0; i < ifmt_ctx->nb_streams; i++) {
        AVStream *stream = ifmt_ctx->streams[i];
        AVCodec *dec = avcodec_find_decoder(stream->codecpar->codec_id);
        AVCodecContext *codec_ctx;
        if (!dec) {
            av_log(NULL, AV_LOG_ERROR, "Failed to find decoder for stream #%un", i);
            return AVERROR_DECODER_NOT_FOUND;
        }
        codec_ctx = avcodec_alloc_context3(dec);
        if (!codec_ctx) {
            av_log(NULL, AV_LOG_ERROR, "Failed to allocate the decoder context for stream #%un", i);
            return AVERROR(ENOMEM);
        }
        ret = avcodec_parameters_to_context(codec_ctx, stream->codecpar);
        if (ret < 0) {
            av_log(NULL, AV_LOG_ERROR, "Failed to copy decoder parameters to input decoder context "
                   "for stream #%un", i);
            return ret;
        }
        /* Reencode video & audio and remux subtitles etc. */
        if (codec_ctx->codec_type == AVMEDIA_TYPE_VIDEO
                || codec_ctx->codec_type == AVMEDIA_TYPE_AUDIO) {
            if (codec_ctx->codec_type == AVMEDIA_TYPE_VIDEO)
                codec_ctx->framerate = av_guess_frame_rate(ifmt_ctx, stream, NULL);
            /* Open decoder */
            ret = avcodec_open2(codec_ctx, dec, NULL);
            if (ret < 0) {
                av_log(NULL, AV_LOG_ERROR, "Failed to open decoder for stream #%un", i);
                return ret;
            }
        }
        stream_ctx[i].dec_ctx = codec_ctx;
    }

    av_dump_format(ifmt_ctx, 0, filename, 0);
    return 0;
}

static int open_output_file(const char *filename)
{
    AVStream *out_stream;
    AVStream *in_stream;
    AVCodecContext *dec_ctx, *enc_ctx;
    AVCodec *encoder;
    int ret;
    unsigned int i;

    ofmt_ctx = NULL;
    avformat_alloc_output_context2(&ofmt_ctx, NULL, NULL, filename);
    if (!ofmt_ctx) {
        av_log(NULL, AV_LOG_ERROR, "Could not create output contextn");
        return AVERROR_UNKNOWN;
    }


    for (i = 0; i < ifmt_ctx->nb_streams; i++) {
        out_stream = avformat_new_stream(ofmt_ctx, NULL);
        if (!out_stream) {
            av_log(NULL, AV_LOG_ERROR, "Failed allocating output streamn");
            return AVERROR_UNKNOWN;
        }

        in_stream = ifmt_ctx->streams[i];
        dec_ctx = stream_ctx[i].dec_ctx;

        if (dec_ctx->codec_type == AVMEDIA_TYPE_VIDEO
                || dec_ctx->codec_type == AVMEDIA_TYPE_AUDIO) {
            /* in this example, we choose transcoding to same codec */
            encoder = avcodec_find_encoder(dec_ctx->codec_id);
            if (!encoder) {
                av_log(NULL, AV_LOG_FATAL, "Necessary encoder not foundn");
                return AVERROR_INVALIDDATA;
            }
            enc_ctx = avcodec_alloc_context3(encoder);
            if (!enc_ctx) {
                av_log(NULL, AV_LOG_FATAL, "Failed to allocate the encoder contextn");
                return AVERROR(ENOMEM);
            }

            /* In this example, we transcode to same properties (picture size,
             * sample rate etc.). These properties can be changed for output
             * streams easily using filters */
            if (dec_ctx->codec_type == AVMEDIA_TYPE_VIDEO) {
                enc_ctx->height = dec_ctx->height;
                enc_ctx->width = dec_ctx->width;
                enc_ctx->sample_aspect_ratio = dec_ctx->sample_aspect_ratio;
                /* take first format from list of supported formats */
                if (encoder->pix_fmts)
                    enc_ctx->pix_fmt = encoder->pix_fmts[0];
                else
                    enc_ctx->pix_fmt = dec_ctx->pix_fmt;
                /* video time_base can be set to whatever is handy and supported by encoder */
                enc_ctx->time_base = av_inv_q(dec_ctx->framerate);
            } else {
                enc_ctx->sample_rate = dec_ctx->sample_rate;
                enc_ctx->channel_layout = dec_ctx->channel_layout;
                enc_ctx->channels = av_get_channel_layout_nb_channels(enc_ctx->channel_layout);
                /* take first format from list of supported formats */
                enc_ctx->sample_fmt = encoder->sample_fmts[0];
                enc_ctx->time_base = (AVRational){1, enc_ctx->sample_rate};
            }

            if (ofmt_ctx->oformat->flags & AVFMT_GLOBALHEADER)
                enc_ctx->flags |= AV_CODEC_FLAG_GLOBAL_HEADER;

            /* Third parameter can be used to pass settings to encoder */
            ret = avcodec_open2(enc_ctx, encoder, NULL);
            if (ret < 0) {
                av_log(NULL, AV_LOG_ERROR, "Cannot open video encoder for stream #%un", i);
                return ret;
            }
            ret = avcodec_parameters_from_context(out_stream->codecpar, enc_ctx);
            if (ret < 0) {
                av_log(NULL, AV_LOG_ERROR, "Failed to copy encoder parameters to output stream #%un", i);
                return ret;
            }

            out_stream->time_base = enc_ctx->time_base;
            stream_ctx[i].enc_ctx = enc_ctx;
        } else if (dec_ctx->codec_type == AVMEDIA_TYPE_UNKNOWN) {
            av_log(NULL, AV_LOG_FATAL, "Elementary stream #%d is of unknown type, cannot proceedn", i);
            return AVERROR_INVALIDDATA;
        } else {
            /* if this stream must be remuxed */
            ret = avcodec_parameters_copy(out_stream->codecpar, in_stream->codecpar);
            if (ret < 0) {
                av_log(NULL, AV_LOG_ERROR, "Copying parameters for stream #%u failedn", i);
                return ret;
            }
            out_stream->time_base = in_stream->time_base;
        }

    }
    av_dump_format(ofmt_ctx, 0, filename, 1);

    if (!(ofmt_ctx->oformat->flags & AVFMT_NOFILE)) {
        ret = avio_open(&ofmt_ctx->pb, filename, AVIO_FLAG_WRITE);
        if (ret < 0) {
            av_log(NULL, AV_LOG_ERROR, "Could not open output file '%s'", filename);
            return ret;
        }
    }

    /* init muxer, write output file header */
    ret = avformat_write_header(ofmt_ctx, NULL);
    if (ret < 0) {
        av_log(NULL, AV_LOG_ERROR, "Error occurred when opening output filen");
        return ret;
    }

    return 0;
}

static int init_filter(FilteringContext* fctx, AVCodecContext *dec_ctx,
        AVCodecContext *enc_ctx, const char *filter_spec)
{
    char args[512];
    int ret = 0;
    const AVFilter *buffersrc = NULL;
    const AVFilter *buffersink = NULL;
    AVFilterContext *buffersrc_ctx = NULL;
    AVFilterContext *buffersink_ctx = NULL;
    AVFilterInOut *outputs = avfilter_inout_alloc();
    AVFilterInOut *inputs  = avfilter_inout_alloc();
    AVFilterGraph *filter_graph = avfilter_graph_alloc();

    if (!outputs || !inputs || !filter_graph) {
        ret = AVERROR(ENOMEM);
        goto end;
    }

    if (dec_ctx->codec_type == AVMEDIA_TYPE_VIDEO) {
        buffersrc = avfilter_get_by_name("buffer");
        buffersink = avfilter_get_by_name("buffersink");
        if (!buffersrc || !buffersink) {
            av_log(NULL, AV_LOG_ERROR, "filtering source or sink element not foundn");
            ret = AVERROR_UNKNOWN;
            goto end;
        }

        snprintf(args, sizeof(args),
                "video_size=%dx%d:pix_fmt=%d:time_base=%d/%d:pixel_aspect=%d/%d",
                dec_ctx->width, dec_ctx->height, dec_ctx->pix_fmt,
                dec_ctx->time_base.num, dec_ctx->time_base.den,
                dec_ctx->sample_aspect_ratio.num,
                dec_ctx->sample_aspect_ratio.den);

        ret = avfilter_graph_create_filter(&buffersrc_ctx, buffersrc, "in",
                args, NULL, filter_graph);
        if (ret < 0) {
            av_log(NULL, AV_LOG_ERROR, "Cannot create buffer sourcen");
            goto end;
        }

        ret = avfilter_graph_create_filter(&buffersink_ctx, buffersink, "out",
                NULL, NULL, filter_graph);
        if (ret < 0) {
            av_log(NULL, AV_LOG_ERROR, "Cannot create buffer sinkn");
            goto end;
        }

        ret = av_opt_set_bin(buffersink_ctx, "pix_fmts",
                (uint8_t*)&enc_ctx->pix_fmt, sizeof(enc_ctx->pix_fmt),
                AV_OPT_SEARCH_CHILDREN);
        if (ret < 0) {
            av_log(NULL, AV_LOG_ERROR, "Cannot set output pixel formatn");
            goto end;
        }
    } else if (dec_ctx->codec_type == AVMEDIA_TYPE_AUDIO) {
        buffersrc = avfilter_get_by_name("abuffer");
        buffersink = avfilter_get_by_name("abuffersink");
        if (!buffersrc || !buffersink) {
            av_log(NULL, AV_LOG_ERROR, "filtering source or sink element not foundn");
            ret = AVERROR_UNKNOWN;
            goto end;
        }

        if (!dec_ctx->channel_layout)
            dec_ctx->channel_layout =
                av_get_default_channel_layout(dec_ctx->channels);
        snprintf(args, sizeof(args),
                "time_base=%d/%d:sample_rate=%d:sample_fmt=%s:channel_layout=0x%"PRIx64,
                dec_ctx->time_base.num, dec_ctx->time_base.den, dec_ctx->sample_rate,
                av_get_sample_fmt_name(dec_ctx->sample_fmt),
                dec_ctx->channel_layout);
        ret = avfilter_graph_create_filter(&buffersrc_ctx, buffersrc, "in",
                args, NULL, filter_graph);
        if (ret < 0) {
            av_log(NULL, AV_LOG_ERROR, "Cannot create audio buffer sourcen");
            goto end;
        }

        ret = avfilter_graph_create_filter(&buffersink_ctx, buffersink, "out",
                NULL, NULL, filter_graph);
        if (ret < 0) {
            av_log(NULL, AV_LOG_ERROR, "Cannot create audio buffer sinkn");
            goto end;
        }

        ret = av_opt_set_bin(buffersink_ctx, "sample_fmts",
                (uint8_t*)&enc_ctx->sample_fmt, sizeof(enc_ctx->sample_fmt),
                AV_OPT_SEARCH_CHILDREN);
        if (ret < 0) {
            av_log(NULL, AV_LOG_ERROR, "Cannot set output sample formatn");
            goto end;
        }

        ret = av_opt_set_bin(buffersink_ctx, "channel_layouts",
                (uint8_t*)&enc_ctx->channel_layout,
                sizeof(enc_ctx->channel_layout), AV_OPT_SEARCH_CHILDREN);
        if (ret < 0) {
            av_log(NULL, AV_LOG_ERROR, "Cannot set output channel layoutn");
            goto end;
        }

        ret = av_opt_set_bin(buffersink_ctx, "sample_rates",
                (uint8_t*)&enc_ctx->sample_rate, sizeof(enc_ctx->sample_rate),
                AV_OPT_SEARCH_CHILDREN);
        if (ret < 0) {
            av_log(NULL, AV_LOG_ERROR, "Cannot set output sample raten");
            goto end;
        }
    } else {
        ret = AVERROR_UNKNOWN;
        goto end;
    }

    /* Endpoints for the filter graph. */
    outputs->name       = av_strdup("in");
    outputs->filter_ctx = buffersrc_ctx;
    outputs->pad_idx    = 0;
    outputs->next       = NULL;

    inputs->name       = av_strdup("out");
    inputs->filter_ctx = buffersink_ctx;
    inputs->pad_idx    = 0;
    inputs->next       = NULL;

    if (!outputs->name || !inputs->name) {
        ret = AVERROR(ENOMEM);
        goto end;
    }

    if ((ret = avfilter_graph_parse_ptr(filter_graph, filter_spec,
                    &inputs, &outputs, NULL)) < 0)
        goto end;

    if ((ret = avfilter_graph_config(filter_graph, NULL)) < 0)
        goto end;

    /* Fill FilteringContext */
    fctx->buffersrc_ctx = buffersrc_ctx;
    fctx->buffersink_ctx = buffersink_ctx;
    fctx->filter_graph = filter_graph;

end:
    avfilter_inout_free(&inputs);
    avfilter_inout_free(&outputs);

    return ret;
}

static int init_filters(void)
{
    const char *filter_spec;
    unsigned int i;
    int ret;
    filter_ctx = av_malloc_array(ifmt_ctx->nb_streams, sizeof(*filter_ctx));
    if (!filter_ctx)
        return AVERROR(ENOMEM);

    for (i = 0; i < ifmt_ctx->nb_streams; i++) {
        filter_ctx[i].buffersrc_ctx  = NULL;
        filter_ctx[i].buffersink_ctx = NULL;
        filter_ctx[i].filter_graph   = NULL;
        if (!(ifmt_ctx->streams[i]->codecpar->codec_type == AVMEDIA_TYPE_AUDIO
                || ifmt_ctx->streams[i]->codecpar->codec_type == AVMEDIA_TYPE_VIDEO))
            continue;


        if (ifmt_ctx->streams[i]->codecpar->codec_type == AVMEDIA_TYPE_VIDEO)
            filter_spec = "null"; /* passthrough (dummy) filter for video */
        else
            filter_spec = "amovie=a.mp3[a1];[a1][in]amix=inputs=2:duration=first:dropout_transition=2"; /* passthrough (dummy) filter for audio */
        ret = init_filter(&filter_ctx[i], stream_ctx[i].dec_ctx,
                stream_ctx[i].enc_ctx, filter_spec);
        if (ret)
            return ret;
    }
    return 0;
}

static int encode_write_frame(AVFrame *filt_frame, unsigned int stream_index, int *got_frame) {
    int ret;
    int got_frame_local;
    AVPacket enc_pkt;
    int (*enc_func)(AVCodecContext *, AVPacket *, const AVFrame *, int *) =
        (ifmt_ctx->streams[stream_index]->codecpar->codec_type ==
         AVMEDIA_TYPE_VIDEO) ? avcodec_encode_video2 : avcodec_encode_audio2;

    if (!got_frame)
        got_frame = &got_frame_local;

    av_log(NULL, AV_LOG_INFO, "Encoding framen");
    /* encode filtered frame */
    enc_pkt.data = NULL;
    enc_pkt.size = 0;
    av_init_packet(&enc_pkt);
    ret = enc_func(stream_ctx[stream_index].enc_ctx, &enc_pkt,
            filt_frame, got_frame);
    av_frame_free(&filt_frame);
    if (ret < 0)
        return ret;
    if (!(*got_frame))
        return 0;

    /* prepare packet for muxing */
    enc_pkt.stream_index = stream_index;
    av_packet_rescale_ts(&enc_pkt,
                         stream_ctx[stream_index].enc_ctx->time_base,
                         ofmt_ctx->streams[stream_index]->time_base);

    av_log(NULL, AV_LOG_DEBUG, "Muxing framen");
    /* mux encoded frame */
    ret = av_interleaved_write_frame(ofmt_ctx, &enc_pkt);
    return ret;
}

static int filter_encode_write_frame(AVFrame *frame, unsigned int stream_index)
{
    int ret;
    AVFrame *filt_frame;

    av_log(NULL, AV_LOG_INFO, "Pushing decoded frame to filtersn");
    /* push the decoded frame into the filtergraph */
    ret = av_buffersrc_add_frame_flags(filter_ctx[stream_index].buffersrc_ctx,
            frame, 0);
    if (ret < 0) {
        av_log(NULL, AV_LOG_ERROR, "Error while feeding the filtergraphn");
        return ret;
    }

    /* pull filtered frames from the filtergraph */
    while (1) {
        filt_frame = av_frame_alloc();
        if (!filt_frame) {
            ret = AVERROR(ENOMEM);
            break;
        }
        av_log(NULL, AV_LOG_INFO, "Pulling filtered frame from filtersn");
        ret = av_buffersink_get_frame(filter_ctx[stream_index].buffersink_ctx,
                filt_frame);
        if (ret < 0) {
            /* if no more frames for output - returns AVERROR(EAGAIN)
             * if flushed and no more frames for output - returns AVERROR_EOF
             * rewrite retcode to 0 to show it as normal procedure completion
             */
            if (ret == AVERROR(EAGAIN) || ret == AVERROR_EOF)
                ret = 0;
            av_frame_free(&filt_frame);
            break;
        }

        filt_frame->pict_type = AV_PICTURE_TYPE_NONE;
        ret = encode_write_frame(filt_frame, stream_index, NULL);
        if (ret < 0)
            break;
    }

    return ret;
}

static int flush_encoder(unsigned int stream_index)
{
    int ret;
    int got_frame;

    if (!(stream_ctx[stream_index].enc_ctx->codec->capabilities &
                AV_CODEC_CAP_DELAY))
        return 0;

    while (1) {
        av_log(NULL, AV_LOG_INFO, "Flushing stream #%u encodern", stream_index);
        ret = encode_write_frame(NULL, stream_index, &got_frame);
        if (ret < 0)
            break;
        if (!got_frame)
            return 0;
    }
    return ret;
}

int main(int argc, char **argv)
{
    int ret;
    AVPacket packet = { .data = NULL, .size = 0 };
    AVFrame *frame = NULL;
    enum AVMediaType type;
    unsigned int stream_index;
    unsigned int i;
    int got_frame;
    int (*dec_func)(AVCodecContext *, AVFrame *, int *, const AVPacket *);

    if (argc != 3) {
        av_log(NULL, AV_LOG_ERROR, "Usage: %s <input file> <output file>n", argv[0]);
        return 1;
    }

    if ((ret = open_input_file(argv[1])) < 0)
        goto end;
    if ((ret = open_output_file(argv[2])) < 0)
        goto end;
    if ((ret = init_filters()) < 0)
        goto end;

    /* read all packets */
    while (1) {
        if ((ret = av_read_frame(ifmt_ctx, &packet)) < 0)
            break;
        stream_index = packet.stream_index;
        type = ifmt_ctx->streams[packet.stream_index]->codecpar->codec_type;
        av_log(NULL, AV_LOG_DEBUG, "Demuxer gave frame of stream_index %un",
                stream_index);

        if (filter_ctx[stream_index].filter_graph) {
            av_log(NULL, AV_LOG_DEBUG, "Going to reencode&filter the framen");
            frame = av_frame_alloc();
            if (!frame) {
                ret = AVERROR(ENOMEM);
                break;
            }
            av_packet_rescale_ts(&packet,
                                 ifmt_ctx->streams[stream_index]->time_base,
                                 stream_ctx[stream_index].dec_ctx->time_base);
            dec_func = (type == AVMEDIA_TYPE_VIDEO) ? avcodec_decode_video2 :
                avcodec_decode_audio4;
            ret = dec_func(stream_ctx[stream_index].dec_ctx, frame,
                    &got_frame, &packet);
            if (ret < 0) {
                av_frame_free(&frame);
                av_log(NULL, AV_LOG_ERROR, "Decoding failedn");
                break;
            }

            if (got_frame) {
                frame->pts = frame->best_effort_timestamp;
                ret = filter_encode_write_frame(frame, stream_index);
                av_frame_free(&frame);
                if (ret < 0)
                    goto end;
            } else {
                av_frame_free(&frame);
            }
        } else {
            /* remux this frame without reencoding */
            av_packet_rescale_ts(&packet,
                                 ifmt_ctx->streams[stream_index]->time_base,
                                 ofmt_ctx->streams[stream_index]->time_base);

            ret = av_interleaved_write_frame(ofmt_ctx, &packet);
            if (ret < 0)
                goto end;
        }
        av_packet_unref(&packet);
    }

    /* flush filters and encoders */
    for (i = 0; i < ifmt_ctx->nb_streams; i++) {
        /* flush filter */
        if (!filter_ctx[i].filter_graph)
            continue;
        ret = filter_encode_write_frame(NULL, i);
        if (ret < 0) {
            av_log(NULL, AV_LOG_ERROR, "Flushing filter failedn");
            goto end;
        }

        /* flush encoder */
        ret = flush_encoder(i);
        if (ret < 0) {
            av_log(NULL, AV_LOG_ERROR, "Flushing encoder failedn");
            goto end;
        }
    }

    av_write_trailer(ofmt_ctx);
end:
    av_packet_unref(&packet);
    av_frame_free(&frame);
    for (i = 0; i < ifmt_ctx->nb_streams; i++) {
        avcodec_free_context(&stream_ctx[i].dec_ctx);
        if (ofmt_ctx && ofmt_ctx->nb_streams > i && ofmt_ctx->streams[i] && stream_ctx[i].enc_ctx)
            avcodec_free_context(&stream_ctx[i].enc_ctx);
        if (filter_ctx && filter_ctx[i].filter_graph)
            avfilter_graph_free(&filter_ctx[i].filter_graph);
    }
    av_free(filter_ctx);
    av_free(stream_ctx);
    avformat_close_input(&ifmt_ctx);
    if (ofmt_ctx && !(ofmt_ctx->oformat->flags & AVFMT_NOFILE))
        avio_closep(&ofmt_ctx->pb);
    avformat_free_context(ofmt_ctx);

    if (ret < 0)
        av_log(NULL, AV_LOG_ERROR, "Error occurred: %sn", av_err2str(ret));

    return ret ? 1 : 0;
}

其实主要就是那句滤镜参数设置字符串：

filter_spec = "amovie=a.mp3[a1];[a1][in]amix=inputs=2:duration=first:dropout_transition=2"; /* passthrough (dummy) filter for audio */

使用ffmpeg实现合并多个音频为一个音频的方法就介绍到这里。

作者：悟空  公众号：流媒体技术
