mipi camera怎么在rk平台的dts上做适配？

RTC观主 • 来源： 飞一样的成长 • • 技术文章

之前有很多朋友问在rk平台上怎么适配mipi摄像头，或者说在设备树里面去修改，今天分享一篇不错的文章给大家！

MIPI-CSI

RK3588s MIPI-CSI资源介绍：

mipi camera怎么在rk平台的dts上做适配？

注意：D/C-PHY 仅用作DPHY-V2.0。

VICAP

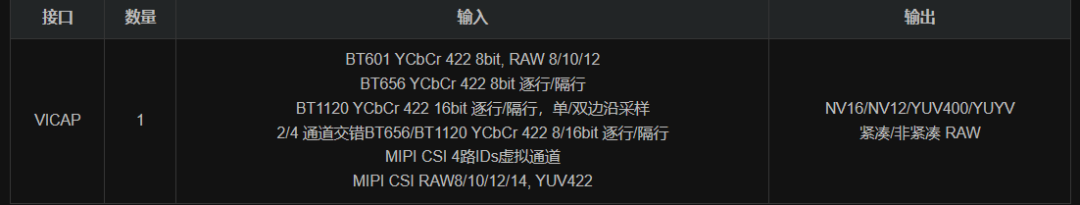

RK3588/RK3588S VICAP支持输入输出规格：

mipi camera怎么在rk平台的dts上做适配？

ISP

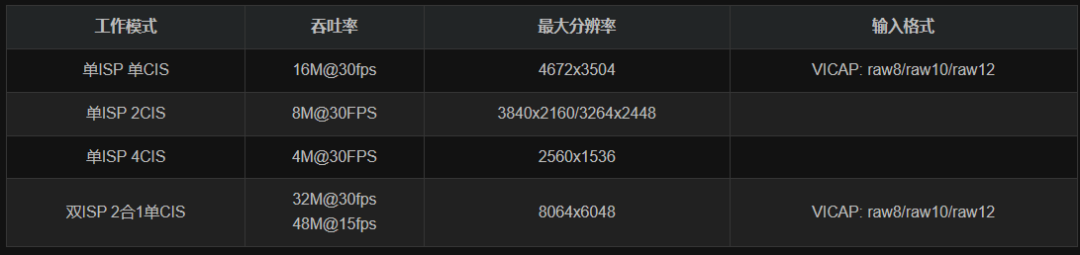

RK3588/RK3588s 的ISP属于RK ISP v3.0版本，拥有2个ISP:

mipi camera怎么在rk平台的dts上做适配？

注：CIS全称CMOS Image Sensor

RK3588 Camera相关 DTS配置介绍

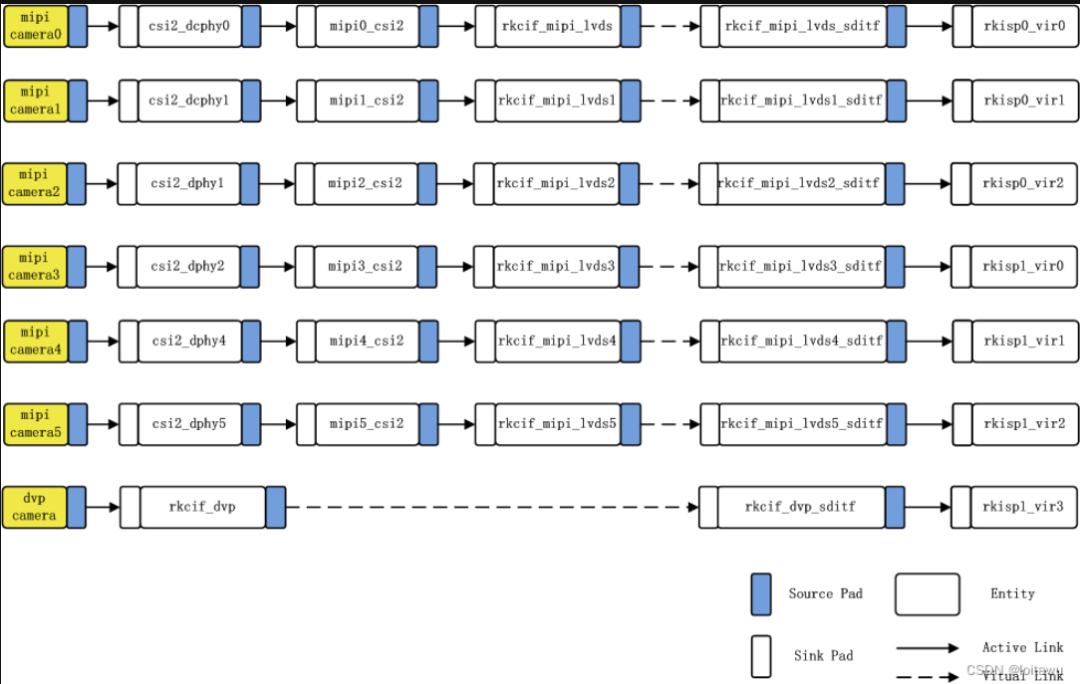

这里以RK3588-EVB开发板的camera配置来进行说明;RK3588 的camera通路,下图是RK3588 camera连接链路示意图，可以支持7路camera。

mipi camera怎么在rk平台的dts上做适配？

框图说明：

  • rk3588支持两个dcphy，节点名称分别为csi2_dcphy0/csi2_dcphy1。每个dcphy硬件支持RX/TX同时使用，对于camera输入使用的是RX。支持DPHY/CPHY协议复用；需要注意的是同一个dcphy的TX/RX只能同时使用DPHY或同时使用CPHY。其他dcphy参数请查阅rk3588数据手册。
  • rk3588支持2个dphy硬件，这里我们称之为dphy0_hw/dphy1_hw，两个dphy硬件都可以工作在full mode 和split mode两种模式下。

dphy0_hw:

  • full mode：节点名称使用csi2_dphy0，最多支持4 lane。
  • split mode： 拆分成2个phy使用，分别为csi2_dphy1（使用0/1 lane）、csi2_dphy2(使用2/3 lane)，每个phy最多支持2 lane。
  • 当dphy0_hw使用full mode时，链路需要按照csi2_dphy1这条链路来配置，但是节点名称csi2_dphy1需要修改为csi2_dphy0，软件上是通过phy的序号来区分phy使用的模式。

dphy1_hw:

  • full mode：节点名称使用csi2_dphy3，最多支持4 lane。
  • split mode： 拆分成2个phy使用，分别为csi2_dphy4（使用0/1 lane）、csi2_dphy5(使用2/3 lane)，每个phy最多支持2 lane。
  • 当dphy1_hw使用full mode时，链路需要按照csi2_dphy4这条链路来配置，但是节点名称csi2_dphy4需要修改为csi2_dphy3，软件上是通过phy的序号来区分phy使用的模式。

使用上述mipi phy节点，需要把对应的物理节点配置上。

（csi2_dcphy0_hw/csi2_dcphy1_hw/csi2_dphy0_hw/csi2_dphy1_hw） 每个mipi phy都需要一个csi2模块来解析mipi协议，节点名称分别为mipi0_csi2~mipi5_csi2。

rk3588所有camera数据都需要通过vicap，再链接到isp。rk3588仅支持一个vicap硬件，这个vicap支持同时输入6路mipi phy，及一路dvp数据，所以我们将vicap分化成rkcif_mipi_lvds~rkcif_mipi_lvds5、rkcif_dvp等7个节点，各个节点的绑定关系需要严格按照框图的节点序号配置。

每个vicap节点与isp的链接关系，通过对应虚拟出的XXX_sditf来指明链接关系。

rk3588支持2个isp硬件，每个isp设备可虚拟出多个虚拟节点，软件上通过回读的方式，依次从ddr读取每一路的图像数据进isp处理。对于多摄方案，建议将数据流平均分配到两个isp上。

直通与回读模式：

  • 直通：指数据经过vicap采集，直接发送给isp处理，不存储到ddr。需要注意的是hdr直通时，只有短帧是真正的直通，长帧需要存在ddr，isp再从ddr读取。
  • 回读：指数据经过vicap采集到ddr，应用获取到数据后，将buffer地址推送给isp，isp再从ddr获取图像数据。

再dts配置时，一个isp硬件，如果只配置一个虚拟节点，默认使用直通模式，如果配置了多个虚拟节点默认使用回读模式。

单路Camera的dts配置说明

RK3588 EVB开发板默认只有1路camera，其链接方式如上图的mipi camera0。DTS配置在kernel-5.10\arch\arm64\boot\dts\rockchip\rk3588-evb1-imx415.dtsi，可以结合上的图来理解这个dts的配置，如下:

// SPDX-License-Identifier: (GPL-2.0+ OR MIT)
/*
 * Copyright (c) 2021 Rockchip Electronics Co., Ltd.
 *
 */

/ {

 红外滤光片（IRCUT）由两根线控制，对这两根线施加3.5v~6v的电源，通过对IRCUT供电电源的正负极对调，且满足通电时间100ms±10%，能够实现IRCUT的切换。驱动通过两个gpio控制电机驱动器的电流输出方向，gpio命令为open（红线）、close（黑线）。电流由open流向close，为红外截止滤光片，白天工作状态；电流由close流向open，为白玻璃片，夜晚工作状态。其配置如下：
 cam_ircut0: cam_ircut {
  status = "okay";
  compatible = "rockchip,ircut";
  ircut-open-gpios = <&gpio3 RK_PC1 GPIO_ACTIVE_HIGH>;
  ircut-close-gpios  = <&gpio3 RK_PC0 GPIO_ACTIVE_HIGH>;
  rockchip,camera-module-index = <0>;
  rockchip,camera-module-facing = "back";
 };
};
//这里使用的是csi2_dcphy0
&csi2_dcphy0 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;
  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi_in_ucam0: endpoint@1 {
    reg = <1>;
    //sensor端的port名
    remote-endpoint = <&imx415_out0>;
    //mipi lane数，1lane为<1>,4lane为<1 2 3 4>，这里配置的是4lane，这个必须要配置否则会无法识别mipi类型
    data-lanes = <1 2 3 4>;
   };
  };
  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   csidcphy0_out: endpoint@0 {
    reg = <0>;
    //mipi0_csi2_input是对应的isp端的port名
    remote-endpoint = <&mipi0_csi2_input>;
   };
  };
 };
};

&i2c5 {
 status = "okay";

 imx415: imx415@1a {
  compatible = "sony,imx415";//需要与驱动定义的字符串一致
  reg = <0x1a>;//sensor的I2C设备地址，7位
  clocks = <&cru CLK_MIPI_CAMARAOUT_M1>;//sensor clockin配置
  clock-names = "xvclk";
  pinctrl-names = "default";
  pinctrl-0 = <&mipim0_camera1_clk>;
  //电源配置
  power-domains = <&power RK3588_PD_VI>;
  //power管脚配置
  pwdn-gpios = <&gpio1 RK_PA0 GPIO_ACTIVE_HIGH>;
  avdd-supply = <&vcc_mipidcphy0>;
  //模组编号，该编号不要重复
  rockchip,camera-module-index = <0>;
  //模组朝向，有前摄“front”、后摄“back”
  rockchip,camera-module-facing = "back";
  //模组名称
  rockchip,camera-module-name = "CMK-OT2022-PX1";
  //IR CUT设备
  rockchip,camera-module-lens-name = "IR0147-50IRC-8M-F20";
  lens-focus = <&cam_ircut0>;
  port {
   imx415_out0: endpoint {
   //mipi dphy端的port名
    remote-endpoint = <&mipi_in_ucam0>;
    //mipi lane数，1lane为<1>,4lane为<1 2 3 4>，这里配置的是4lane，这个必须要配置否则会无法识别mipi类型
    data-lanes = <1 2 3 4>;
   };
  };
 };
};

&mipi_dcphy0 {
 status = "okay";
};

&mipi0_csi2 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;

  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi0_csi2_input: endpoint@1 {
    reg = <1>;
    //csi2 dphy端的port名
    remote-endpoint = <&csidcphy0_out>;
   };
  };

  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi0_csi2_output: endpoint@0 {
    reg = <0>;
    //vicap端的port名
    remote-endpoint = <&cif_mipi_in0>;
   };
  };
 };
};
//vicap的配置，这里用rkcif节点代表vicap
&rkcif {
 status = "okay";
};

&rkcif_mipi_lvds {
 status = "okay";

 port {
  cif_mipi_in0: endpoint {
  //csi2 host端的port名
   remote-endpoint = <&mipi0_csi2_output>;
  };
 };
};

&rkcif_mipi_lvds_sditf {
 status = "okay";

 port {
  mipi_lvds_sditf: endpoint {
  //isp虚拟设备端port名
   remote-endpoint = <&isp0_vir0>;
  };
 };
};

&rkcif_mmu {
 status = "okay";
};

&rkisp0 {
 status = "okay";
};

&isp0_mmu {
 status = "okay";
};

&rkisp0_vir0 {
 status = "okay";

 port {
  #address-cells = <1>;
  #size-cells = <0>;

  isp0_vir0: endpoint@0 {
   reg = <0>;
   //vicap mipi sditf的端点名
   remote-endpoint = <&mipi_lvds_sditf>;
  };
 };
};

6路camera的DTS配置说明

基于RK3588-EVB开发板加6路camera转接板可以实现6路camera，其DTS配置在kernel-5.10\arch\arm64\boot\dts\rockchip\rk3588-evb1-cam-6x.dtsi。6路camera的链路可以参考上面的图，并根据图来理解dts配置，如下：

// SPDX-License-Identifier: (GPL-2.0+ OR MIT)
/*
 * Copyright (c) 2021 Rockchip Electronics Co., Ltd.
 *
 */
//下面是phy的配置一共6个phy
&csi2_dcphy0 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;
  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi_in_ucam0: endpoint@1 {
    reg = <1>;
    remote-endpoint = <&imx464_out0>;
    data-lanes = <1 2>;
   };
  };
  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   csidcphy0_out: endpoint@0 {
    reg = <0>;
    remote-endpoint = <&mipi0_csi2_input>;
   };
  };
 };
};

&csi2_dcphy1 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;
  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi_in_ucam1: endpoint@1 {
    reg = <1>;
    remote-endpoint = <&imx464_out1>;
    data-lanes = <1 2>;
   };
  };
  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   csidcphy1_out: endpoint@0 {
    reg = <0>;
    remote-endpoint = <&mipi1_csi2_input>;
   };
  };
 };
};

&csi2_dphy0_hw {
 status = "okay";
};

&csi2_dphy1_hw {
 status = "okay";
};

&csi2_dphy1 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;
  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi_in_ucam2: endpoint@1 {
    reg = <1>;
    remote-endpoint = <&imx464_out2>;
    data-lanes = <1 2>;
   };
  };
  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   csidphy1_out: endpoint@0 {
    reg = <0>;
    remote-endpoint = <&mipi2_csi2_input>;
   };
  };
 };
};

&csi2_dphy2 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;
  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi_in_ucam3: endpoint@1 {
    reg = <1>;
    remote-endpoint = <&imx464_out3>;
    data-lanes = <1 2>;
   };
  };
  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   csidphy2_out: endpoint@0 {
    reg = <0>;
    remote-endpoint = <&mipi3_csi2_input>;
   };
  };
 };
};

&csi2_dphy4 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;
  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi_in_ucam4: endpoint@1 {
    reg = <1>;
    remote-endpoint = <&imx464_out4>;
    data-lanes = <1 2>;
   };
  };
  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   csidphy4_out: endpoint@0 {
    reg = <0>;
    remote-endpoint = <&mipi4_csi2_input>;
   };
  };
 };
};

&csi2_dphy5 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;
  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi_in_ucam5: endpoint@1 {
    reg = <1>;
    remote-endpoint = <&imx464_out5>;
    data-lanes = <1 2>;
   };
  };
  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   csidphy5_out: endpoint@0 {
    reg = <0>;
    remote-endpoint = <&mipi5_csi2_input>;
   };
  };
 };
};
//下面是sensor的配置一共配置imx464_0到imx464_5 六个sensor
&i2c3 {
 status = "okay";

 /* module 77/79 0x1a 78/80 0x36 */
 imx464_2: imx464-2@1a {
  compatible = "sony,imx464";
  status = "okay";
  reg = <0x1a>;
  clocks = <&cru CLK_MIPI_CAMARAOUT_M3>;
  clock-names = "xvclk";
  power-domains = <&power RK3588_PD_VI>;
  pinctrl-names = "default";
  pinctrl-0 = <&mipim0_camera3_clk>;
  avdd-supply = <&vcc_mipicsi0>;
  pwdn-gpios = <&gpio1 RK_PB3 GPIO_ACTIVE_HIGH>;
  rockchip,camera-module-index = <2>;
  rockchip,camera-module-facing = "back";
  rockchip,camera-module-name = "CMK-OT1980-PX1";
  rockchip,camera-module-lens-name = "SHG102";
  port {
imx464_out2: endpoint {
    remote-endpoint = <&mipi_in_ucam2>;
    data-lanes = <1 2>;
   };
  };
 };

 imx464_3: imx464-3@36 {
  compatible = "sony,imx464";
  status = "okay";
  reg = <0x36>;
  clocks = <&cru CLK_MIPI_CAMARAOUT_M3>;
  clock-names = "xvclk";
  power-domains = <&power RK3588_PD_VI>;
  avdd-supply = <&vcc_mipicsi0>;
  pwdn-gpios = <&gpio1 RK_PA7 GPIO_ACTIVE_HIGH>;
  rockchip,camera-module-index = <3>;
  rockchip,camera-module-facing = "back";
  rockchip,camera-module-name = "CMK-OT1980-PX1";
  rockchip,camera-module-lens-name = "SHG102";
  port {
   imx464_out3: endpoint {
    remote-endpoint = <&mipi_in_ucam3>;
    data-lanes = <1 2>;
   };
  };
 };
};

&i2c4 {
 status = "okay";
 pinctrl-0 = <&i2c4m3_xfer>;

 /* 77/79 0x1a 78/80 0x36 */
 imx464_4: imx464-4@1a {
  compatible = "sony,imx464";
  status = "okay";
  reg = <0x1a>;
  clocks = <&cru CLK_MIPI_CAMARAOUT_M4>;
  clock-names = "xvclk";
  power-domains = <&power RK3588_PD_VI>;
  pinctrl-names = "default";
  pinctrl-0 = <&mipim0_camera4_clk>;
  avdd-supply = <&vcc_mipicsi1>;
  pwdn-gpios = <&gpio1 RK_PB4 GPIO_ACTIVE_HIGH>;
  rockchip,camera-module-index = <0>;
  rockchip,camera-module-facing = "back";
  rockchip,camera-module-name = "CMK-OT1980-PX1";
  rockchip,camera-module-lens-name = "SHG102";
  port {
   imx464_out4: endpoint {
    remote-endpoint = <&mipi_in_ucam4>;
    data-lanes = <1 2>;
   };
  };
 };

 imx464_5: imx464-5@36 {
  compatible = "sony,imx464";
  status = "okay";
  reg = <0x36>;
  clocks = <&cru CLK_MIPI_CAMARAOUT_M4>;
  clock-names = "xvclk";
  power-domains = <&power RK3588_PD_VI>;
  avdd-supply = <&vcc_mipicsi1>;
  pwdn-gpios = <&gpio1 RK_PB0 GPIO_ACTIVE_HIGH>;
  rockchip,camera-module-index = <1>;
  rockchip,camera-module-facing = "back";
  rockchip,camera-module-name = "CMK-OT1980-PX1";
  rockchip,camera-module-lens-name = "SHG102";
  port {
   imx464_out5: endpoint {
    remote-endpoint = <&mipi_in_ucam5>;
    data-lanes = <1 2>;
   };
  };
 };
};

&i2c5 {
 status = "okay";

 /* 77/79 0x1a 78/80 0x36 */
 imx464_0: imx464-0@1a {
  compatible = "sony,imx464";
  status = "okay";
  reg = <0x1a>;
  clocks = <&cru CLK_MIPI_CAMARAOUT_M1>;
  clock-names = "xvclk";
  power-domains = <&power RK3588_PD_VI>;
  pwdn-gpios = <&gpio1 RK_PA0 GPIO_ACTIVE_HIGH>;
  pinctrl-names = "default";
  pinctrl-0 = <&mipim0_camera1_clk>;
  avdd-supply = <&vcc_mipidcphy0>;
  rockchip,camera-module-index = <4>;
  rockchip,camera-module-facing = "back";
  rockchip,camera-module-name = "CMK-OT1980-PX1";
  rockchip,camera-module-lens-name = "SHG102";
  port {
   imx464_out0: endpoint {
    remote-endpoint = <&mipi_in_ucam0>;
    data-lanes = <1 2>;
   };
  };
 };

 imx464_1: imx464-1@36 {
  compatible = "sony,imx464";
  status = "okay";
  reg = <0x36>;
  clocks = <&cru CLK_MIPI_CAMARAOUT_M2>;
  clock-names = "xvclk";
  power-domains = <&power RK3588_PD_VI>;
  pinctrl-names = "default";
  pinctrl-0 = <&mipim0_camera2_clk>;
  pwdn-gpios = <&gpio1 RK_PA1 GPIO_ACTIVE_HIGH>;
  avdd-supply = <&vcc_mipidcphy0>;
  rockchip,camera-module-index = <5>;
  rockchip,camera-module-facing = "back";
  rockchip,camera-module-name = "CMK-OT1980-PX1";
  rockchip,camera-module-lens-name = "SHG102";
  port {
   imx464_out1: endpoint {
    remote-endpoint = <&mipi_in_ucam1>;
    data-lanes = <1 2>;
   };
  };
 };
};

&mipi_dcphy0 {
 status = "okay";
};

&mipi_dcphy1 {
 status = "okay";
};
//下面是mipi 控制器的配置，共6个控制器
&mipi0_csi2 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;

  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi0_csi2_input: endpoint@1 {
    reg = <1>;
    remote-endpoint = <&csidcphy0_out>;
   };
  };

  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi0_csi2_output: endpoint@0 {
    reg = <0>;
    remote-endpoint = <&cif_mipi_in0>;
   };
  };
 };
};

&mipi1_csi2 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;

  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi1_csi2_input: endpoint@1 {
    reg = <1>;
    remote-endpoint = <&csidcphy1_out>;
   };
  };

  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi1_csi2_output: endpoint@0 {
    reg = <0>;
    remote-endpoint = <&cif_mipi_in1>;
   };
  };
 };
};

&mipi2_csi2 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;

  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi2_csi2_input: endpoint@1 {
    reg = <1>;
    remote-endpoint = <&csidphy1_out>;
   };
  };

  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi2_csi2_output: endpoint@0 {
    reg = <0>;
    remote-endpoint = <&cif_mipi_in2>;
   };
  };
 };
};

&mipi3_csi2 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;

  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi3_csi2_input: endpoint@1 {
    reg = <1>;
    remote-endpoint = <&csidphy2_out>;
   };
  };

  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi3_csi2_output: endpoint@0 {
    reg = <0>;
    remote-endpoint = <&cif_mipi_in3>;
   };
  };
 };
};

&mipi4_csi2 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;

  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi4_csi2_input: endpoint@1 {
    reg = <1>;
    remote-endpoint = <&csidphy4_out>;
   };
  };

  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi4_csi2_output: endpoint@0 {
    reg = <0>;
    remote-endpoint = <&cif_mipi_in4>;
   };
  };
 };
};

&mipi5_csi2 {
 status = "okay";

 ports {
  #address-cells = <1>;
  #size-cells = <0>;

  port@0 {
   reg = <0>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi5_csi2_input: endpoint@1 {
    reg = <1>;
    remote-endpoint = <&csidphy5_out>;
   };
  };

  port@1 {
   reg = <1>;
   #address-cells = <1>;
   #size-cells = <0>;

   mipi5_csi2_output: endpoint@0 {
    reg = <0>;
    remote-endpoint = <&cif_mipi_in5>;
   };
  };
 };
};
//下面是vicap配置，分为6个vicap节点及对应的6个sditf虚拟链接节点
&rkcif {
 status = "okay";
};

&rkcif_mipi_lvds {
 status = "okay";

 port {
  cif_mipi_in0: endpoint {
   remote-endpoint = <&mipi0_csi2_output>;
  };
 };
};

&rkcif_mipi_lvds_sditf {
 status = "okay";

 port {
  mipi_lvds_sditf: endpoint {
   remote-endpoint = <&isp0_vir0>;
  };
 };
};

&rkcif_mipi_lvds1 {
 status = "okay";

 port {
  cif_mipi_in1: endpoint {
   remote-endpoint = <&mipi1_csi2_output>;
  };
 };
};

&rkcif_mipi_lvds1_sditf {
 status = "okay";

 port {
  mipi1_lvds_sditf: endpoint {
   remote-endpoint = <&isp1_vir0>;
  };
 };
};

&rkcif_mipi_lvds2 {
 status = "okay";

 port {
  cif_mipi_in2: endpoint {
   remote-endpoint = <&mipi2_csi2_output>;
  };
 };
};

&rkcif_mipi_lvds2_sditf {
 status = "okay";

 port {
  mipi2_lvds_sditf: endpoint {
   remote-endpoint = <&isp0_vir1>;
  };
 };
};

&rkcif_mipi_lvds3 {
 status = "okay";

 port {
  cif_mipi_in3: endpoint {
   remote-endpoint = <&mipi3_csi2_output>;
  };
 };
};

&rkcif_mipi_lvds3_sditf {
 status = "okay";

 port {
  mipi3_lvds_sditf: endpoint {
   remote-endpoint = <&isp1_vir1>;
  };
 };
};

&rkcif_mipi_lvds4 {
 status = "okay";

 port {
  cif_mipi_in4: endpoint {
   remote-endpoint = <&mipi4_csi2_output>;
  };
 };
};

&rkcif_mipi_lvds4_sditf {
 status = "okay";

 port {
  mipi4_lvds_sditf: endpoint {
   remote-endpoint = <&isp0_vir2>;
  };
 };
};

&rkcif_mipi_lvds5 {
 status = "okay";

 port {
  cif_mipi_in5: endpoint {
   remote-endpoint = <&mipi5_csi2_output>;
  };
 };
};
&rkcif_mipi_lvds5_sditf {
 status = "okay";

 port {
  mipi5_lvds_sditf: endpoint {
   remote-endpoint = <&isp1_vir2>;
  };
 };
};

&rkcif_mmu {
 status = "okay";
};
//下面是isp的配置，将2个isp分为6个虚拟节点，每个isp虚拟出3个节点
&rkisp0 {
 status = "okay";
};

&isp0_mmu {
 status = "okay";
};

&rkisp0_vir0 {
 status = "okay";

 port {
  #address-cells = <1>;
  #size-cells = <0>;

  isp0_vir0: endpoint@0 {
   reg = <0>;
   remote-endpoint = <&mipi_lvds_sditf>;
  };
 };
};

&rkisp0_vir1 {
 status = "okay";

 port {
  #address-cells = <1>;
  #size-cells = <0>;

  isp0_vir1: endpoint@0 {
   reg = <0>;
   remote-endpoint = <&mipi2_lvds_sditf>;
  };
 };
};

&rkisp0_vir2 {
 status = "okay";

 port {
  #address-cells = <1>;
  #size-cells = <0>;

  isp0_vir2: endpoint@0 {
   reg = <0>;
   remote-endpoint = <&mipi4_lvds_sditf>;
  };
 };
};

&rkisp1 {
 status = "okay";
};

&isp1_mmu {
 status = "okay";
};

&rkisp1_vir0 {
 status = "okay";

 port {
  #address-cells = <1>;
  #size-cells = <0>;

  isp1_vir0: endpoint@0 {
   reg = <0>;
   remote-endpoint = <&mipi1_lvds_sditf>;
  };
 };
};

&rkisp1_vir1 {
 status = "okay";

 port {
  #address-cells = <1>;
  #size-cells = <0>;

  isp1_vir1: endpoint@0 {
   reg = <0>;
   remote-endpoint = <&mipi3_lvds_sditf>;
  };
 };
};


&rkisp1_vir2 {
 status = "okay";

 port {
  #address-cells = <1>;
  #size-cells = <0>;

  isp1_vir2: endpoint@0 {
   reg = <0>;
   remote-endpoint = <&mipi5_lvds_sditf>;
  };
 };
};
